End Bits

Used as Bulldozer End Bits, Motor Grader End Bits

We offer a wide array of end bits for bulldozers and motor graders. DEHU end bits are designed to offer the best combination of wear and impact resistance. The premium end bits are manufactured using alloy steel and are designed to work with no defects in the material or the workmanship, as well as prevent breakage during usage. We offer two top quality levels, depending on which materials customers choose.

Our company can provide End Bits according to the OEM numbers as follows.

Bulldozer End Bits
Bulldozer end bits are wearing parts on the bulldozer shovel. We offer two quality types based on different materials. Each bulldozer end bit is applicable for use in Komatsu and Shantui vehicles, among others. We also offer OEM services according to customer drawings and samples.

1U1545/46~4T6241/42

Part No.	Dimension
1U1545/46 End Bits	680*370*40
1U4925/26 End Bits	770*400*51
3G4285(2) End Bits	425*203*19
3G7763/64 End Bits
3G8277/78 End Bits	480*300*40
3G8279/80 End Bits	480*300*40
3G8281/82 End Bits	680*400*40
3G8283/84 End Bits	680*400*40
3G8285/86 End Bits	480*300*40
3G8287/88 End Bits	480*300*40
3G8289/90 End Bits	680*400*35
3G8291/92 End Bits	680*400*35
3G8293/94 End Bits	480*300*25
3G8295/96 End Bits	415*245*25
3G8297/98 End Bits	415*245*25
3G8299/300 End Bits	480*300*29
3G8301/02 End Bits	480*300*29
3G8311/12 End Bits
3G8313/14 End Bits
3G8315/16 End Bits	480*300*29
3G8317/18 End Bits	480*300*29
3G8319/20 End Bits	415*245*25
3G8321/22 End Bits	415*245*25
3J2463/64 End Bits
3J2465/66 End Bits	480*300*30
4J8261/62 End Bits	370*245*22
4J8723/24 End Bits	590*350*35
4J8843/44 End Bits	480*300*30
4J8849/50 End Bits	480*300*30
4T3041/42 End Bits	375*203*25
4T3043/44 End Bits	295*203*19
4T3045/46 End Bits	375*203*25
4T3049/50 End Bits	355*203*19
4T3051/52 End Bits	336*203*19
4T4435/36 End Bits	405*203*25
4T4455/54 End Bits	450*272*30
4T5407/08 End Bits
4T6229(2) End Bits	330*165*16
4T6239/40 End Bits	457*254*25
4T6241/42 End Bits

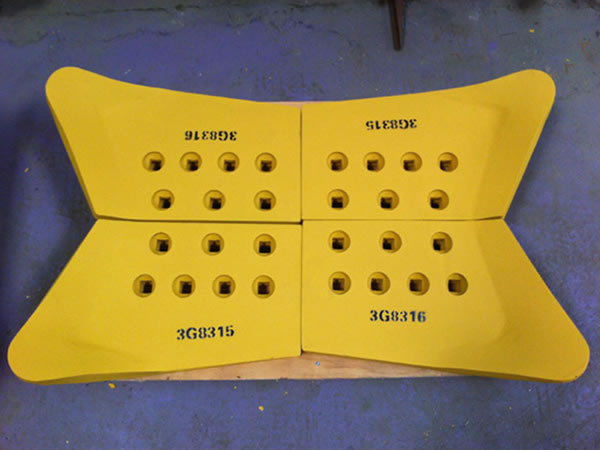

3G8315 3G8316

4T6389(2)~9W8653/54

Part No. End Bits	Dimension
4T6389(2) End Bits
4T6391(2) End Bits
4T6505/06 End Bits	457*254*25
4T6538(2) End Bits
4T6667/68 End Bits	457*254*25
4T6669/70 End Bits
4T6671/72 End Bits
4T8089/90 End Bits
5A4565/66 End Bits
5J1279/80 End Bits	590*350*35
5J1419/20 End Bits	370*245*22
6Y4277/78 End Bits
6Y4411/10 End Bits
6Y5839/40 End Bits
7J2975/76 End Bits
7T4088/89 End Bits
7T4091/90 End Bits	550*390*55
7T4093/92 End Bits
7T4095/94 End Bits
7T4689/88 End Bits	680*370*60
8E4193/94 End Bits	600*400*35
8E4197/96 End Bits	580*400*51
8E4199/98 End Bits
8E4537/38 End Bits
8E4539/40 End Bits	580*403*45
8E4541/42 End Bits	750*480*63.5
8E4543/44 End Bits
8E4545/46 End Bits
8E7078/79 End Bits
8E9379/78 End Bits
8E9749/48 End Bits
8E9785/86 End Bits
9F7073/74 End Bits	370*245*22
9F7075/76 End Bits	370*245*22
9J1477/78 End Bits	480*300*30
9J1479/80 End Bits	480*300*30
9W1875/76 End Bits	475*280*30
9W6199/98 End Bits	602*350*35
9W8651/52 End Bits
9W8653/54 End Bits

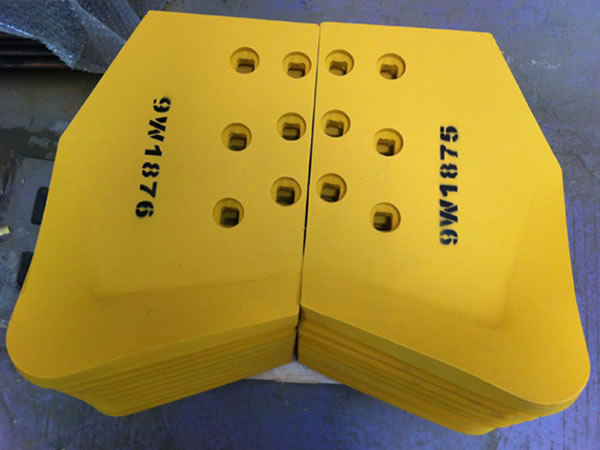

9W1875 9W1876

9W8874/75~198-71-31250/60

Part No. End Bits	Dimension
9W8874/75 End Bits	465*255*25
9W9011/10 End Bits	495*272*25
9W9015/14 End Bits	495*268*25
9W9193/94 End Bits
112-70-31120/30 End Bits	370*160*16
112-817-1110(2) End Bits	375*160*16
112-946-1510(2) End Bits	355*160*16
11G-71-31170(2) End Bits	380*160*16
120-70-31411(2) End Bits
120-Y46-5162/72 End Bits	430*160*20
124-70-21330/40 End Bits	374*170*20
12F-929-2170(2) End Bits	315*160*16
13F-Z27-1581/71 End Bits	326*230*25
13F-Z27-1582/72 End Bits	325*204*25
140-70-11130/40 End Bits	375*155*20
140-70-11131/41 End Bits	359*222*25
140-70-11170/80 End Bits	359*222*25
144-70-11180/90 End Bits	330*223*25
144-70-11250/60 End Bits	326*204*30
144-70-11251/61 End Bits	325*204*30
144-952-1120/30 End Bits	388*222*25
150-70-21343/53 End Bits	435*254*30
150-70-21344/54 End Bits	435*254*30
150-70-21345/55 End Bits	435*254*30

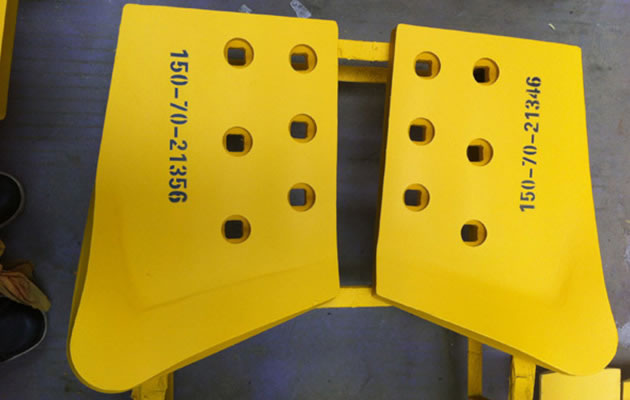

150-70-21356/46 End Bits	435*254*30
154-926-1120/30 End Bits	445*254*30
175-70-21123/33 End Bits	401*254*38
175-70-21125/35 End Bits	401*254*38
175-70-21126/36 End Bits	492*254*38
175-71-11170/80 End Bits	630*254*38
175-71-11172/82 End Bits	630*254*38
175-71-22271/81 End Bits	630*254*38
175-71-22272/82 End Bits	540*254*38
175-72-22241/51 End Bits	603*254*38

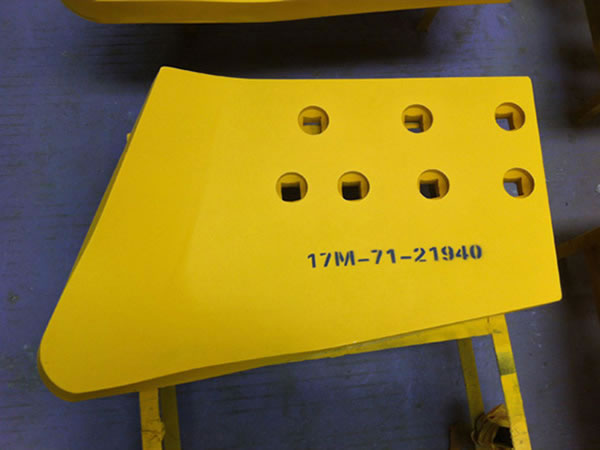

17M-71-21930/40 End Bits	698*387*40
195-70-12610/20 End Bits	622*330*40
195-71-11173/83 End Bits	680*330*40
195-71-21350/60 End Bits	732*305*40
195-71-61930/40 End Bits
198-71-31250/60 End Bits

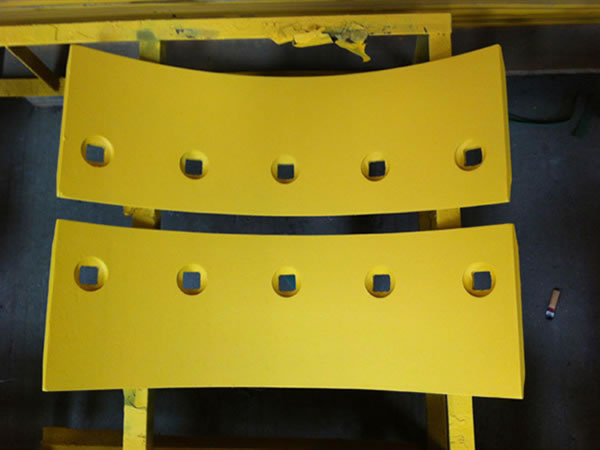

Grader End Bits
Grader end bits are wearing parts on the motor grader. As with the bulldozer end bits, we offer two quality levels based on different materials needed for manufacturing.

Our grader end bits are applicable for use in Komatsu and Shantui vehicles, as well as others. We also offer OEM services based on customer technical drawings or samples.

9D4880/81~7D9999

Part No.	Dimension
9D4880/81 End Bits	484*152*19
8E5530 End Bits	474*152*19
9J4407/08 End Bits
9J4405/06 End Bits	482*152*16
8E5529 End Bits
7D2083/84 End Bits	553*152*16
7D2052 End Bits	474*152*16
9W2945 End Bits
9J4411 End Bits
8E5531 End Bits	474*152*16
6D1948 End Bits	571*230*13
7D5583 End Bits
7D5193 End Bits
7D9999 End Bits	600*230*13

6Y2805~233-70-12150

Part No. End Bits	Dimension
6Y2805 End Bits

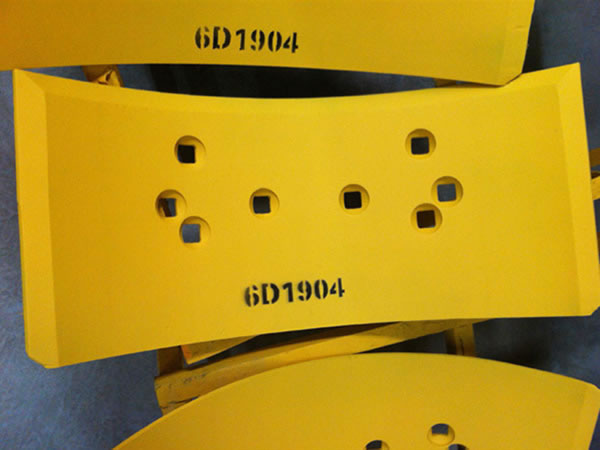

6D1904 End Bits	470*230*13
7D5582 End Bits
4D5757/58 End Bits
9W1767 End Bits	460*230*13
232-70-12130 End Bits	465*152*16
232-70-12131 End Bits
232-70-12150 End Bits	421*229*13
232-70-12160 End Bits	421*229*13
232-70-52180 End Bits	470*152*16
232-70-52190 End Bits	485*229*13
232-70-52191 End Bits	603*229*13
232-70-52980 End Bits	596*229*13
233-70-12150 End Bits	451*152*16

232-70-52190

233-70-12160~ 237-870-1130

Part No. End Bits	Dimension
233-70-12160 End Bits	451*152*16
234-70-12214 End Bits	553*156*16
234-70-12232/42 End Bits	560*280*13
234-70-12233 End Bits	529*229*13
234-70-12234 End Bits
234-70-12650 End Bits	632*229*13
234-70-32230 End Bits	501*203*19
234-70-32240 End Bits	615*280*13
234-70-32330 End Bits
234-70-32440 End Bits
236-70-22360 End Bits
237-70-22150 End Bits	558*229*13
237-870-1120 End Bits	423*152*16
237-870-1130 End Bits	423*152*16

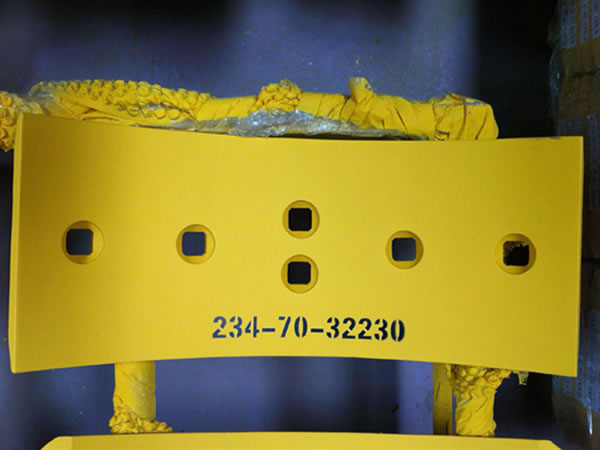

234-70-32230
