Cutting Edge

Used as Bulldozer Cutting Edge, Motor Grader Cutting Edge

Description

We offer cutting edges and blades for use on bulldozers and motor graders. DEHU cutting edges are manufactured using a high alloy boron steel and heat treated to exact specifications to meet the demanding application needs for moving earth. A high carbon alloy steel is used to manufacture a number of road maintenance grader blades and snow plow blades where a lower production cost is required. High spec alloy steels and strict heat treatment tolerances are used to ensure that all wear parts are of the highest possible quality.

Please see the chart of mechanical performances below for different materials.

Our company can provide Cutting Edge according to the OEM numbers as follows.

Material Mechanical Properties
Hardness Tensile Strength Elongation Resilience at 25 ℃
30MnB 42-49 HRC 1630 Rm-N/mm2 8% 58J
16Mn 30-34 HRC 1055 Rm-N/mm2 11% 35J
Model Selection according to customer need numbers

Cutting Edges
Bulldozer cutting edges are a wearing part on the bulldozer's shovel. We offer two top quality levels based on different materials. These edges are applicable for Komatsu, Shantui and other excavation machinery. We also offer OEM services according to customer drawings and samples.

1U1192~4T2990

Part No. Dimension
1U1192 Cutting Edges 254*19*913
1U4455 Cutting Edges 406*35*1024
1U4457 Cutting Edges 406*35*783
1U4458 Cutting Edges 406*35*1064
1U4459 Cutting Edges 406*35*1029
1U4929 Cutting Edges 254*32*810
1U4930 Cutting Edges 254*32*856
1U4931 Cutting Edges 254*32*1095
1U4932 Cutting Edges 254*32*923
1U4933 Cutting Edges 254*32*1034
1U4941 Cutting Edges 330*35*1039
1U4943 Cutting Edges 330*35*1353
3G0393 Cutting Edges 330*41*1024
3G0394 Cutting Edges 330*41*1029
3G0395 Cutting Edges 330*41*783
3G0396 Cutting Edges 330*41*1064
4T0081 Cutting Edges 406*41*1029
4T0082 Cutting Edges 406*41*1024
4T0083 Cutting Edges 406*41*1064
4T0084 Cutting Edges 406*41*783
4T0604 Cutting Edges 406*50*1024
4T0607 Cutting Edges 406*50*1029
4T0608 Cutting Edges 406*50*783
4T0609 Cutting Edges 406*50*1064
4T2307 Cutting Edges 330*35*633
4T2308 Cutting Edges 330*35*1217
4T2309 Cutting Edges 330*35*1223
4T2322 Cutting Edges 330*41*633
4T2324 Cutting Edges 330*41*1520
4T2325 Cutting Edges 330*41*1367
4T2326 Cutting Edges 330*41*589
4T2327 Cutting Edges 330*41*1325
4T2328 Cutting Edges 330*41*1062
4T2330 Cutting Edges 330*41*907
4T2331 Cutting Edges 330*41*1974
4T2332 Cutting Edges 330*41*900
4T2333 Cutting Edges 330*41*1223
4T2334 Cutting Edges 330*41*1039
4T2860 Cutting Edges 254*25*1316
4T2861 Cutting Edges 254*25*905
4T2862 Cutting Edges 254*25*1818
4T2863 Cutting Edges 254*25*1520
4T2864 Cutting Edges 254*25*2332
4T2867 Cutting Edges 254*25*2040
4T2888 Cutting Edges 254*25*1621
4T2889 Cutting Edges 254*25*1408
4T2890 Cutting Edges 254*25*1359
4T2916 Cutting Edges 254*19*817
4T2917 Cutting Edges 254*19*1357
4T2921 Cutting Edges 254*19*1062
4T2922 Cutting Edges 254*19*758
4T2923 Cutting Edges 254*19*1029
4T2943 Cutting Edges 254*19*1621
4T2944 Cutting Edges 254*19*1316
4T2945 Cutting Edges 254*19*707
4T2946 Cutting Edges 254*19*1112
4T2948 Cutting Edges 254*19*1062
4T2949 Cutting Edges 254*19*1520
4T2952 Cutting Edges 254*19*802
4T2954 Cutting Edges 254*19*2332
4T2955 Cutting Edges 254*19*1357
4T2972 Cutting Edges 203*16*674
4T2973 Cutting Edges 203*16*859
4T2974 Cutting Edges 203*16*808
4T2976 Cutting Edges 203*16*2231
4T2977 Cutting Edges 203*16*1824
4T2978 Cutting Edges 203*16*2434
4T2979 Cutting Edges 203*16*2028
4T2980 Cutting Edges 203*16*1521
4T2981 Cutting Edges 203*16*2334
4T2982 Cutting Edges 203*16*992
4T2983 Cutting Edges 203*16*383
4T2985 Cutting Edges 254*25*802
4T2986 Cutting Edges 254*25*779
4T2987 Cutting Edges 254*25*923
4T2988 Cutting Edges 254*25*1034
4T2989 Cutting Edges 254*25*1062
4T2990 Cutting Edges 254*25*1112

4T2991~4T9587

Part No. Dimension
4T2991 Cutting Edges 254*25*707
4T2992 Cutting Edges 254*25*758
4T2993 Cutting Edges 254*25*1062
4T2994 Cutting Edges 254*25*1215
4T3004 Cutting Edges 203*19*1441
4T3008 Cutting Edges 203*19*1164
4T3009 Cutting Edges 203*19*1520
4T3010 Cutting Edges 203*19*658
4T3011 Cutting Edges 203*19*1619
4T3012 Cutting Edges 203*19*1497
4T3013 Cutting Edges 203*19*1009
4T3017 Cutting Edges 203*19*2335
4T3020 Cutting Edges 203*19*859
4T3021 Cutting Edges 203*19*1824
4T3023 Cutting Edges 203*19*2231
4T3024 Cutting Edges 203*19*2815
4T3025 Cutting Edges 203*19*1112
4T3026 Cutting Edges 203*19*554
4T3027 Cutting Edges 203*19*383
4T3028 Cutting Edges 203*19*674
4T3029 Cutting Edges 203*19*992
4T3030 Cutting Edges 203*19*1215
4T3417 Cutting Edges 254*25*810
4T3418 Cutting Edges 254*25*1533
4T3419 Cutting Edges 254*25*1215
4T3420 Cutting Edges 254*25*817
4T3421 Cutting Edges 254*25*1357
4T3422 Cutting Edges 254*25*1095
4T3423 Cutting Edges 254*25*856
4T3445 Cutting Edges 254*41*856
4T3446 Cutting Edges 254*41*1095
4T3447 Cutting Edges 254*41*1215
4T3901 Cutting Edges 254*19*1095
4T5318 Cutting Edges 254*19*894
4T6230 Cutting Edges 165*16*869
4T6231 Cutting Edges 165*16*1062
4T6238 Cutting Edges 254*25*1200
4T6262 Cutting Edges 203*19*1019
4T6295 Cutting Edges 254*41*779
4T6296 Cutting Edges 254*41*910
4T6297 Cutting Edges 254*41*922
4T6298 Cutting Edges 254*41*1532
4T6299 Cutting Edges 254*41*1520
4T6300 Cutting Edges 254*41*1520
4T6301 Cutting Edges 254*41*1034
4T6302 Cutting Edges 254*41*810
4T6303 Cutting Edges 254*41*922
4T6377 Cutting Edges 330*29*589
4T6378 Cutting Edges 330*29*900
4T6379 Cutting Edges 330*29*589
4T6381 Cutting Edges 330*29*1353
4T6382 Cutting Edges 330*29*633
4T6385 Cutting Edges 330*29*1223
4T6386 Cutting Edges 330*29*1039
4T6387 Cutting Edges 330*29*1367
4T6388 Cutting Edges 330*29*1062
4T6448 Cutting Edges 305*29*1520
4T6450 Cutting Edges 305*29*2209
4T6453 Cutting Edges 305*29*1974
4T6456 Cutting Edges 305*29*951
4T6457 Cutting Edges 305*29*907
4T6459 Cutting Edges 305*29*1325
4T6512 Cutting Edges 254*25*922
4T6513 Cutting Edges 254*25*1520
4T6514 Cutting Edges 254*25*1558
4T6515 Cutting Edges 254*25*1773
4T6531 Cutting Edges 254*25*1520
4T6532 Cutting Edges 254*25*910
4T6659 Cutting Edges 203*19*1052
4T7109 Cutting Edges 254*19*567
4T7110 Cutting Edges 254*19*988
4T8797 Cutting Edges 254*25*990
4T8798 Cutting Edges 254*25*1077
4T8940 Cutting Edges 203*16*1194
4T9547 Cutting Edges 330*41*1353
4T9555 Cutting Edges 330*41*951
4T9586 Cutting Edges 330*29*1694
4T9587 Cutting Edges 330*29*800

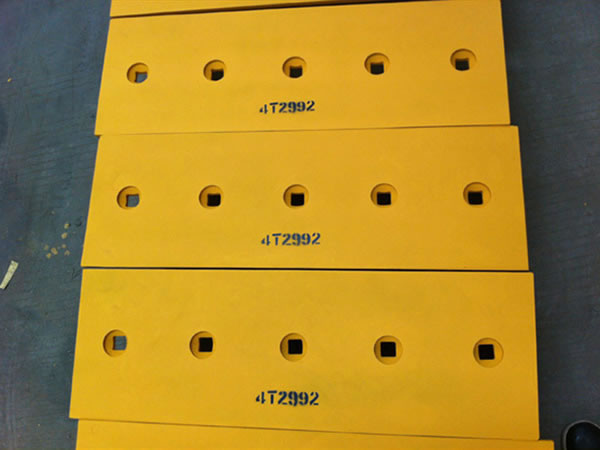

4T2992

4T9590 ~9W9794

Part No. Dimension
4T9590 Cutting Edges 330*29*2164
4T9836 Cutting Edges 330*35*1694
4T9837 Cutting Edges 330*35*2164
4T9838 Cutting Edges 330*35*800
5J6830 Cutting Edges 254*25*2534
5J6833 Cutting Edges 254*25*1826
5J6852 Cutting Edges 254*25*3248
5J6873 Cutting Edges 203*16*2537
5J6876 Cutting Edges 203*16*1743
5J6878 Cutting Edges 203*19*3048
5J6879 Cutting Edges 203*19*1741
5J6880 Cutting Edges 203*19*2334
5J6885 Cutting Edges 203*16*2352
5J6891 Cutting Edges 254*19*1561
5J6897 Cutting Edges 203*19*2892
6J2171 Cutting Edges 203*19*2229
6Y0016 Cutting Edges 406*45*1029
6Y0017 Cutting Edges 406*45*1024
6Y0018 Cutting Edges 406*45*1064
6Y0019 Cutting Edges 406*45*783
6Y0020 Cutting Edges 406*60*1024
6Y0021 Cutting Edges 406*60*1029
6Y0022 Cutting Edges 406*60*783
6Y0023 Cutting Edges 406*60*1064
6Y3840 Cutting Edges 254*25*1227
6Y5538 Cutting Edges 330*29*2264
6Y5539 Cutting Edges 330*29*1787
6Y5540 Cutting Edges 330*29*802
6Y5776 Cutting Edges 330*41*1520
6Y5777 Cutting Edges 330*41*1532
6Y6358 Cutting Edges 280*35*856
6Y6359 Cutting Edges 280*35*810
6Y6360 Cutting Edges 280*35*1094
6Y6761 Cutting Edges 280*35*910
6Y6762 Cutting Edges 280*35*922
6Y6763 Cutting Edges 280*35*1532
6Y6764 Cutting Edges 280*35*1520
6Y6765 Cutting Edges 280*35*1520
7T4342 Cutting Edges 406*41*1039
7T4345 Cutting Edges 330*41*810
7T4346 Cutting Edges 330*41*810
7T4347 Cutting Edges 330*41*1095
7T4349 Cutting Edges 330*41*780
7T4350 Cutting Edges 330*41*780
7T4351 Cutting Edges 330*41*1215
7T4352 Cutting Edges 330*41*922
7T4353 Cutting Edges 330*41*1034
7T5235 Cutting Edges 330*41*856
7T5702 Cutting Edges 330*35*1790
7T6589 Cutting Edges 280*25*1095
7T6591 Cutting Edges 280*25*983
7T6592 Cutting Edges 280*25*567
7T6678 Cutting Edges 280*25*894
7T6936 Cutting Edges 280*25*908
7T9125 Cutting Edges 330*35*802
7T9779 Cutting Edges 406*35*832
7T9781 Cutting Edges 406*35*877
7T9782 Cutting Edges 406*35*909
7T9976 Cutting Edges 203*25*1052
8A8580 Cutting Edges 203*16*624
8A8581 Cutting Edges 203*16*586
8E2085 Cutting Edges 406*60*992
8E2086 Cutting Edges 406*60*859
8E2087 Cutting Edges 406*60*851
8E9377 Cutting Edges 203*16*1054
9U8057 Cutting Edges 203*19*627
9W0775 Cutting Edges 406*35*757
9W1878 Cutting Edges 254*19*1229
9W5232 Cutting Edges 330*29*825
9W6657 Cutting Edges 406*45*859
9W6658 Cutting Edges 406*45*850
9W8655 Cutting Edges 280*35*923
9W8656 Cutting Edges 280*35*779
9W8657 Cutting Edges 280*35*1034
9W8658 Cutting Edges 280*35*1215
9W9792 Cutting Edges 280*25*817
9W9793 Cutting Edges 280*25*1357
9W9794 Cutting Edges 280*25*1062

9W9795~ 198-72-11181

Part No. Dimension
9W9795 Cutting Edges 280*25*757
9W9796 Cutting Edges 280*25*1062
107-3473 Cutting Edges 254*45*779
107-3474 Cutting Edges 254*45*910
107-3475 Cutting Edges 254*45*922
107-3476 Cutting Edges 254*45*1532
107-3477 Cutting Edges 254*45*1520
107-3478 Cutting Edges 254*45*1520
107-3479 Cutting Edges 254*45*1034
107-3480 Cutting Edges 254*45*810
107-3481 Cutting Edges 254*45*922
107-3482 Cutting Edges 254*45*856
107-3483 Cutting Edges 254*45*1095
107-3484 Cutting Edges 254*45*1215
101-71-12370 Cutting Edges 160*16*1670
104-72-21140 Cutting Edges 152*16*1540
104-Z40-1160 Cutting Edges 152*16*1776
112-70-31110 Cutting Edges 160*16*2000
11G-71-21170 Cutting Edges 160*16*870
12F-70-11640 Cutting Edges 152*16*1198
12F-70-31251 Cutting Edges 152*16*760
12F-70-31261 Cutting Edges 152*16*914
12F-70-31281 Cutting Edges 152*16*1218
12F-B74-3171 Cutting Edges 152*16*
130-70-41130 Cutting Edges 203*19*1350
130-70-51130 Cutting Edges 203*19*1425
130-70-61170 Cutting Edges 203*19*1535
130-842-5120 Cutting Edges 203*19*1054
130-920-2180 Cutting Edges 203*19*1199
130-Z20-1510 Cutting Edges 203*19*1255
130-Z20-1610 Cutting Edges 203*19*890
134-72-61410 Cutting Edges 203*19*1350
134-72-61420 Cutting Edges 203*19*1255
13F-Z27-1510 Cutting Edges 203*19*1430
13G-71-61410 Cutting Edges 203*19*1285
13G-72-61410 Cutting Edges 203*19*1430
13G-72-61420 Cutting Edges 203*19*890
13G-72-63250 Cutting Edges 203*19*765
13G-72-63260 Cutting Edges 203*19*448
140-70-11121 Cutting Edges 203*19*1549
144-70-11131 Cutting Edges 203*19*1660
144-871-5130 Cutting Edges 254*19*1595
144-920-1120 Cutting Edges 203*19*1383
14X-71-11310 Cutting Edges 203*19*1383
14X-952-1130 Cutting Edges 203*19*1275
14Y-71-11210 Cutting Edges 203*19*1660
150-70-21311 Cutting Edges 254*25*1473
150-70-21312 Cutting Edges 254*25*1664
150-70-21314 Cutting Edges 254*25*1664
154-70-11313 Cutting Edges
154-70-11314 Cutting Edges 254*25*1157
154-70-16591 Cutting Edges
154-72-11121 Cutting Edges 254*25*1385
154-72-11122 Cutting Edges 254*25*1219
154-72-11151 Cutting Edges 254*25*910

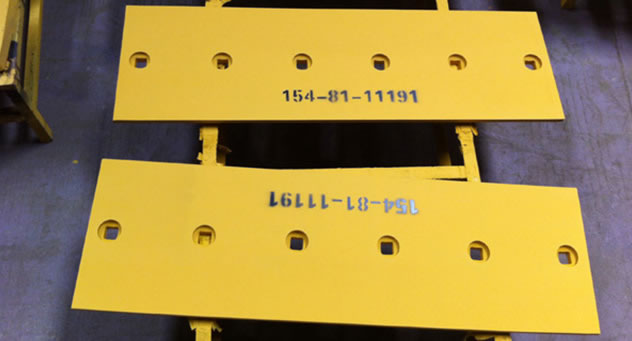

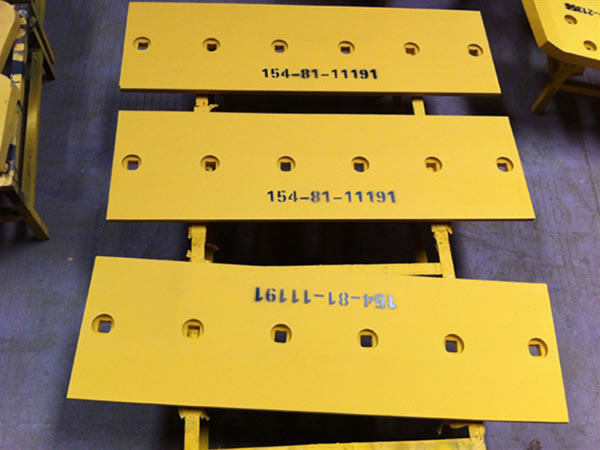

154-81-11191 Cutting Edges 254*25*838
175-70-21114 Cutting Edges 254*25*1978
175-70-21115 Cutting Edges 254*25*1397
175-70-26310 Cutting Edges 254*25*1064
175-71-11242 Cutting Edges 254*25*1509
175-72-21123 Cutting Edges 254*25*902
175-901-1130 Cutting Edges 254*25*1508
17A-71-11351 Cutting Edges 330*32*761
17M-71-21160 Cutting Edges 330*32*
17M-71-21550 Cutting Edges 330*32*1088
195-70-12492 Cutting Edges 330*32*1327
195-71-11653 Cutting Edges 305*32*1536
195-71-11654 Cutting Edges 330*32*1064
195-71-61550 Cutting Edges 406*41*887
195-72-11143 Cutting Edges 406*32*1975
195-72-11144 Cutting Edges 330*32*880
195-72-11153 Cutting Edges 305*32*1013
198-71-11181 Cutting Edges 406*41*1192
198-71-31540 Cutting Edges
198-71-31550 Cutting Edges
198-72-11181 Cutting Edges 406*41*861
154-70-11314

Grader Blades
Grader blades are wearing parts on motor graders. Our grader blades are applicable for use on Komatsu, Shantui and other construction and excavation machines. We also offer OEM services based on technical drawings and samples from the customer.

109-3150~5B5562

Part No. Dimension
109-3150 Cutting Edges 203*25*1219
2C3139 Cutting Edges 152*13*1828
3G1626 Cutting Edges 203*13*1828
3G1627 Cutting Edges 203*13*2133
3G1628 Cutting Edges 203*13*2438
3G2165 Cutting Edges 203*19*610
3G2166 Cutting Edges 203*16*610
3G7965 Cutting Edges 203*13*1219
3G7966 Cutting Edges 152*19*1524
3G8016 Cutting Edges 152*13*1219
4T2231 Cutting Edges 203*25*1828
4T2233 Cutting Edges 203*25*2133
4T2236 Cutting Edges 203*25*2438
4T2237 Cutting Edges 203*25*2438
4T2240 Cutting Edges 203*25*1524
4T2242 Cutting Edges 203*25*2133
4T2244 Cutting Edges 203*25*1828
4T2966 Cutting Edges 203*16*2438
4T2967 Cutting Edges 203*16*1524
4T2968 Cutting Edges 203*16*1828
4T2969 Cutting Edges 203*16*2133
4T2970 Cutting Edges 203*16*2133
4T2971 Cutting Edges 203*16*1828
4T3007 Cutting Edges 203*19*1828
4T3032 Cutting Edges 203*19*2133
4T3033 Cutting Edges 203*19*1828
4T3034 Cutting Edges 203*19*1524
4T3035 Cutting Edges 203*19*2438
4T3036 Cutting Edges 203*19*2133
4T3037 Cutting Edges 203*19*2438
4T3511 Cutting Edges 203*25*1524
4T6502 Cutting Edges 254*25*1828
4T6508 Cutting Edges 254*25*2133
4T6511 Cutting Edges 254*25*2438
4T8316 Cutting Edges 254*35*2133
4T8317 Cutting Edges 254*35*2438
4T9603 Cutting Edges 203*16*2438
5B5562 Cutting Edges 152*16*2133

5B5564~9J3659

Part No. Cutting Edges Dimension
5B5564 Cutting Edges 152*16*1828
5D9553 Cutting Edges 152*16*1828
5D9554 Cutting Edges 152*16*2133
5D9556 Cutting Edges 152*19*1828
5D9557 Cutting Edges 152*19*2133
5D9558 Cutting Edges 203*19*1828
5D9559 Cutting Edges 203*19*2133
5D9561 Cutting Edges 203*16*2133
5D9562 Cutting Edges 203*16*1828
5D9731 Cutting Edges 203*16*2438
5D9732 Cutting Edges 203*19*2438
6G8623 Cutting Edges 203*19*610
7D1158 Cutting Edges 203*16*2133
7D1576 Cutting Edges 203*19*1828
7D1577 Cutting Edges 203*19*2133
7D1949 Cutting Edges 203*19*2438
7D4508 Cutting Edges 152*16*1524
7D4509 Cutting Edges 203*16*1524
7T3493 Cutting Edges 203*25*1828
7T3494 Cutting Edges 203*25*2133
7T3495 Cutting Edges 203*25*2438
7T3496 Cutting Edges 203*25*2438
7T3497 Cutting Edges 203*25*1524
7T3498 Cutting Edges 203*25*2133
7T3499 Cutting Edges 203*25*1828
8D2786 Cutting Edges 152*13*1828
8D2787 Cutting Edges 152*13*2133
8D2788 Cutting Edges 203*13*1828
8D2789 Cutting Edges 203*13*2133
8J4043 Cutting Edges 152*16*2438
8J7782 Cutting Edges 152*13*2438
8J8980 Cutting Edges 203*13*2438
8J9821 Cutting Edges 203*16*2438
9J3655 Cutting Edges 152*16*2438
9J3656 Cutting Edges 152*13*2438
9J3657 Cutting Edges 152*16*1828
9J3658 Cutting Edges 152*16*2133
9J3659 Cutting Edges 152*13*2133

9J3660 ~238-70-12220

Part No. Cutting Edges Dimension
9J3660 Cutting Edges 152*13*1828
9J3862 Cutting Edges 152*13*1524
9J3863 Cutting Edges 203*13*1524
9J7701 Cutting Edges 203*16*1828
9W1835 Cutting Edges 152*16*610
9W6252 Cutting Edges 203*19*1524
232-70-12142 Cutting Edges 152*13*1828
232-70-12143 Cutting Edges 152*16*1828
232-70-12650 Cutting Edges
232-70-12651 Cutting Edges
232-70-52940 Cutting Edges
232-70-52850 Cutting Edges 203*19*1828
232-70-52970 Cutting Edges
232-70-52910 Cutting Edges
232-870-6310 Cutting Edges
233-70-12141 Cutting Edges 152*13*1523
233-70-12450 Cutting Edges
233-870-6120 Cutting Edges
234-70-12192 Cutting Edges 152*13*2133
234-70-12193 Cutting Edges 152*16*2133
234-70-12250 Cutting Edges
234-70-12450 Cutting Edges
234-70-12510 Cutting Edges
234-70-12550 Cutting Edges
234-70-12580 Cutting Edges
234-70-12640 Cutting Edges
234-70-12670 Cutting Edges 203*19*2133
234-70-12710 Cutting Edges 203*16*2133
234-70-16130 Cutting Edges
234-70-16290 Cutting Edges
234-70-16410 Cutting Edges
234-70-16420 Cutting Edges
234-70-32620 Cutting Edges
235-70-12140 Cutting Edges 203*19*2438
236-70-22120 Cutting Edges
237-70-12120 Cutting Edges
238-70-12220 Cutting Edges 152*16*1523

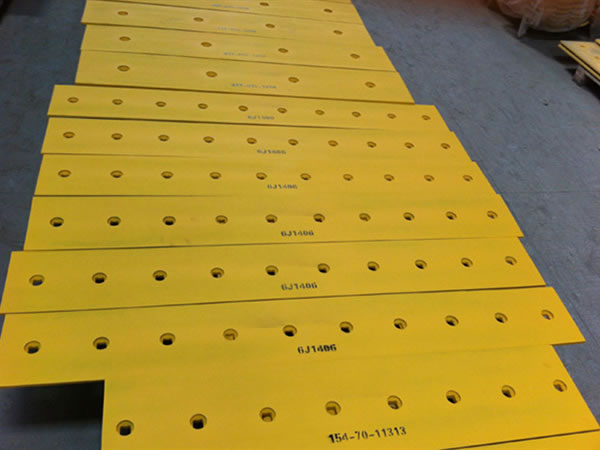

Examples we have made
  • 154-81-11191
  • 6J1406
Inquiry Form
Other products
