Hydraulic Cylinder

Description

Excavator cylinders are most often hydraulic, and include boom cylinders, arm cylinders, and bucket cylinders.

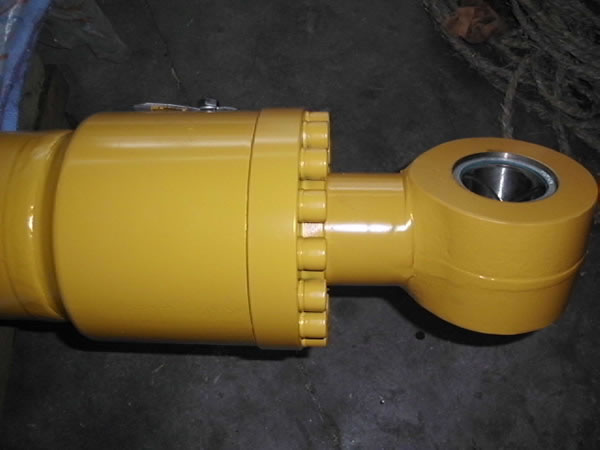

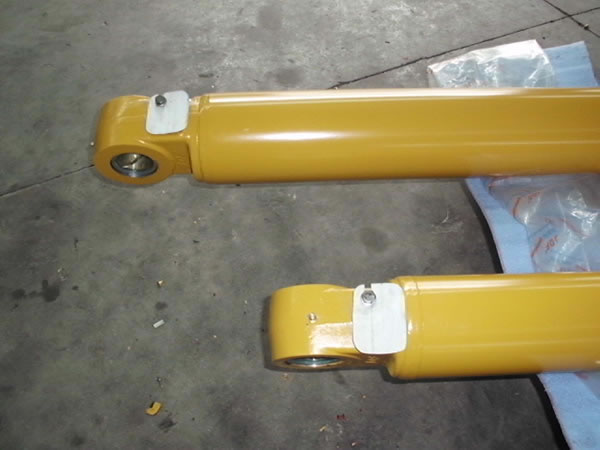

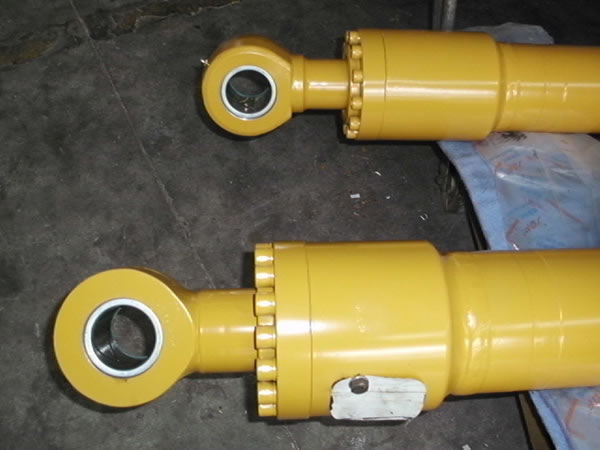

Hydraulic Cylinder

Features:
Forged End Mounts
Induction Hardened Rod
Superior named-brand Seals
Skived burnished tube
Bore Diameters: 80mm to 210mm
Rod Diameters: 50mm to 150mm
Stroke: up to 2716mm
Pressure Ratings: up to 60Mpa
Temperature: -40℃ to 120℃

Process:
Materials selecting →Tempering →Turning →High-frequency quenching →External grinding →Hard chrome plating →External grinding

After tempering and surface high-frequency quenching, then surface hard chrome plating, the process used to make the cylinder tough on the inside, and hard on the outside results in a high surface finish.

Bucket Cylinder

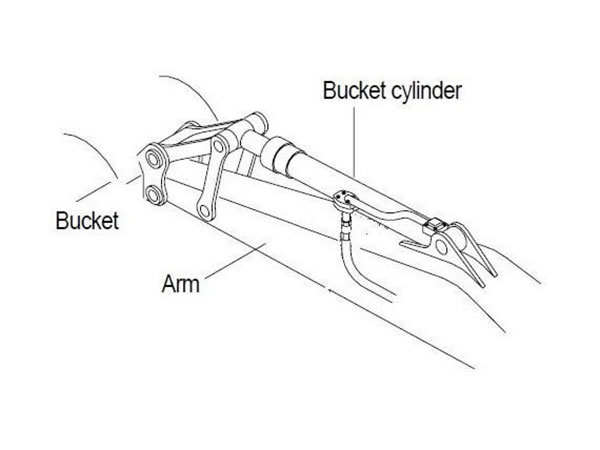

The two ends of the bucket cylinder connect the arm and the bucket. It is used to adjust both the direction and force of digging.

  • Bucket Cylinder

Arm Cylinder

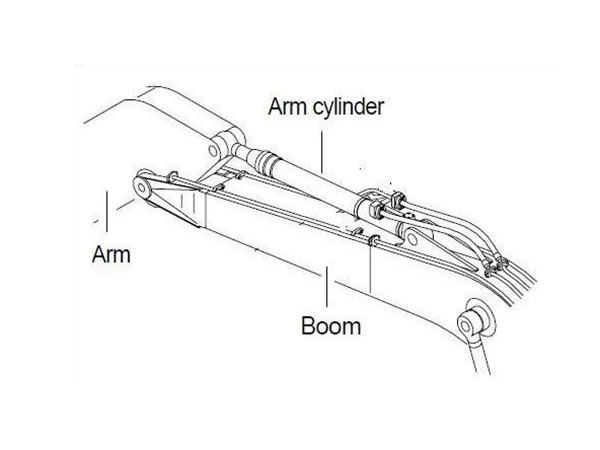

The arm cylinder is installed to the boom and the arm, and drives the arm up and down in a swinging motion.

  • Arm Cylinder

Boom Cylinder

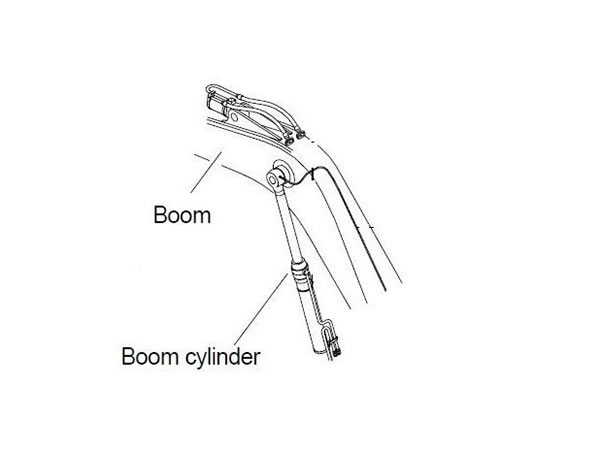

The two ends of the boom cylinder are attached to the boom and the machine body.

  • Boom Cylinder
Model Selection according to customer need numbers

Each of our excavator hydraulic cylinders are applicable for use in Komatsu, Hitachi, Kobelco, Sumitomo, Daewoo, Hyundai, and Volvo excavators, among others. We also offer OEM services based on customer technical drawings and samples.
