Heavy Equipment Bolts and Nuts
Description
The quality of nuts and bolts depends on the material they are made from, and the hardness levels. We offer two quality levels, depending on the material the nuts and bolts are made from.
10.9 grade nuts and bolts are made from 40Cr and have a hardness level of 33-36 HRC.
12.9 grade buts and bolts are made from 35CrMo and have a hardness level of 36-42HRC.
We have a multitude of bolts and nuts that are applicable for track shoes, sprockets, segments, idlers, track rollers, carrier rollers, swing bearings, cutting edges, end bits, and side cutters.
We also offer OEM services according to drawings and samples.
Model Selection according to customer need numbers
Our company can provide Heavy Equipment Bolts and Nuts according to the OEM numbers as follows.
203-32-51210+203-32-51220~195-32-61210+195-32-61221
| Part Number | Dimension | Part Name |
| 203-32-51210+203-32-51220 | M16*1.5*53 | Track Bolt & Nut |
| 130-32-11213+130-32-11220 | M16*1.5*57 | Track Bolt & Nut |
| 135-32-11211+135-32-11221 | M18*1.5*57 | Track Bolt & Nut |
| 9W3619+9W3361 | M20*1.5*55 | Track Bolt & Nut |
| 2404T2749 | M20*1.5*60 | Track Bolt & Nut |
| 6Y0846+9W3361 | M20*1.5*63 | Track Bolt & Nut |
| 6Y9024+9W4381 | M22*1.5*67 | Track Bolt & Nut |
| 8E6103+9W4381 | M22*1.5*73 | Track Bolt & Nut |
| 208-32-51210+208-32-51220 | M24*1.5*65F | Track Bolt & Nut |
| 176-32-11210+178-32-11220 | M24*1.5*75 | Track Bolt & Nut |
| 195-32-11210+195-32-11221 | M27*2.0*82 | Track Bolt & Nut |
| 6Y7432+6Y7433 | M27*2.0*90 | Track Bolt & Nut |
| 195-32-61210+195-32-61221 | M30*2.0*96 | Track Bolt & Nut |
5P4684~195-30-61350

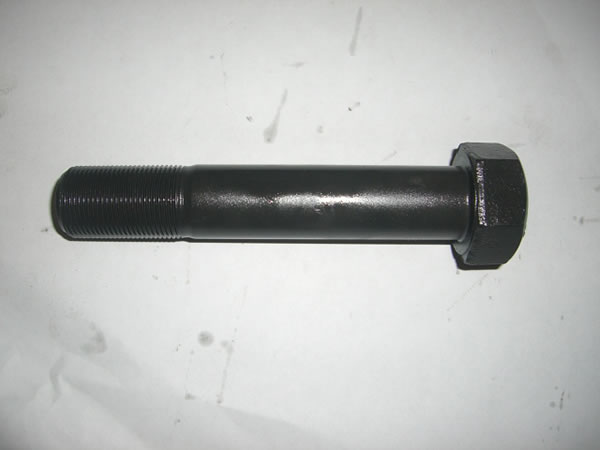

| Part Number | Dimension | Part Name |
| 5P4684 | 9/16"*2 7/8"UNF | Split Master Link Bolt |
| 5P4683 | 9/16"*4 1/8"UNF | Split Master Link Bolt |
| 3T8601 | 5/8"*2 19/32"UNF | Split Master Link Bolt |
| 5P0569 | 5/8"*4 5/16"UNF | Split Master Link Bolt |
| 6V1793 | 3/4"*3 9/64"UNF | Split Master Link Bolt |
| 3P1111 | 3/4"*5 1/2"UNF | Split Master Link Bolt |
| 6V1724 | 7/8"*3 25/32"UNF | Split Master Link Bolt |
| 6V1725 | 7/8"*5 5/64"UNF | Split Master Link Bolt |
| 6V1727 | 1"*4 21/64"UNF | Split Master Link Bolt |
| 7T0998 | 1 1/8"*6 29/64"UNF | Split Master Link Bolt |
| 130-32-21252 | M16*1.5*82 | Split Master Link Bolt |
| 79039344 | M18*1.5*96 | Split Master Link Bolt |
| 144-32-21342 | M19*1.5*98 | Split Master Link Bolt |
| 134-32-61310 | M20*1.5*90 | Split Master Link Bolt |
| 154-32-41292 | M20*1.5*120 | Split Master Link Bolt |
| 79035319 | M22*1.5*115 | Split Master Link Bolt |
| 175-32-81192 | M24*1.5*105 | Split Master Link Bolt |
| 195-32-23140 | M27*2.0*147 | Split Master Link Bolt |
| 195-30-61350 | M30*2.0*168 | Split Master Link Bolt |
9W9265+8H5724~SM27095
| Part Number | Dimension | Part Name |
| 9W9265+8H5724 | 1/2"*1 1/2"UNF | Segment Bolt & Nut |
| 3S8182+7H3607 | 5/8"*1 7/8"UNF | Segment Bolt & Nut |
| 6V0937+7H3607 | 5/8"*2 7/64"UNF | Segment Bolt & Nut |
| 1171617+7H3608 | 3/4"*1 15/16"UNF | Segment Bolt & Nut |
| 5P7665+7H3608 | 3/4"*2 1/2"UNF | Segment Bolt & Nut |
| 9S2727+7H3609 | 7/8"*2 9/16"UNF | Segment Bolt & Nut |
| 9W8328+7H3609 | 7/8"*3 3/16"UNF | Segment Bolt & Nut |
| 5P0233+2M5656 | 1"*3"UNS | Segment Bolt & Nut |
| 5P5422+2M5656 | 1"*3 5/8"UNS | Segment Bolt & Nut |
| 155-27-12181+01803-02228 | M22*1.5*71 | Segment Bolt & Nut |
| 178-27-11150+01803-02430 | M24*1.5/26*80 | Segment Bolt & Nut |
| 195-27-31641+195-27-31871 | M24*1.5*90 | Segment Bolt & Nut |
| SM27095 | M27*2*95 | Segment Bolt & Nut |
4F3654+4K0367~02091-12020+02290-12031

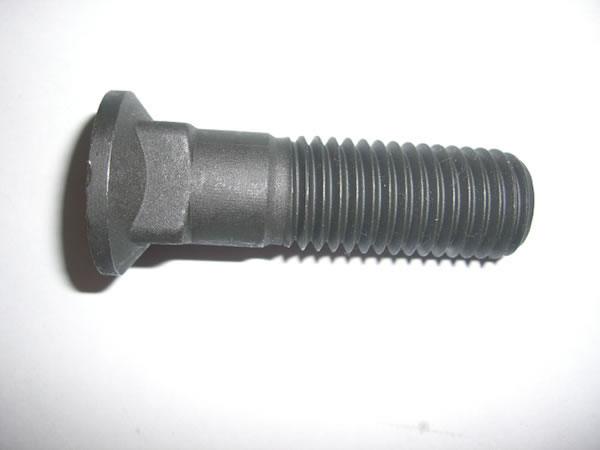

| Part Number | Dimension | Part Name |
| 4F3654+4K0367 | 5/8"*2"UNC | Plow Bolt & Nut |
| 4F3568+4K0367 | 5/8"*3"UNC | Plow Bolt & Nut |
| 4F7827+2J3506 | 3/4"*2 1/4"UNC | Plow Bolt & Nut |
| 4F0253+2J3506 | 3/4"*4 1/2"UNC | Plow Bolt & Nut |
| 6F0196+2J3505 | 7/8"*2 3/4"UNC | Plow Bolt & Nut |
| 2J2548+2J3505 | 7/8"*3 1/2"UNC | Plow Bolt & Nut |
| 3J2801+2J3507 | 1"*2 1/2"UNC | Plow Bolt & Nut |
| 1J4948+2J3507 | 1"*3 3/4"UNC | Plow Bolt & Nut |
| 1J3527+2J3507 | 1"*4 1/2"UNC | Plow Bolt & Nut |
| 1J4947+2J3507 | 1"*5 1/4"UNC | Plow Bolt & Nut |
| 8T9079+3K9770 | 1 1/4"*3 1/2"UNC | Plow Bolt & Nut |
| 6V8363+3K9770 | 1 1/4"*4 3/5"UNC | Plow Bolt & Nut |
| 5P8361+3K9770 | 1 1/4"*5"UNC | Plow Bolt & Nut |
| 154-70-11143+02290-11219 | 3/4"*2 1/2"UNC | Plow Bolt & Nut |
| 154-70-11143+02290-11219 | 3/4"*3 1/2"UNC | Plow Bolt & Nut |
| 175-71-11461+02290-11422 | 7/8"*3 1/2"UNC | Plow Bolt & Nut |
| 195-71-11461+02290-11625 | 1"*4"UNC | Plow Bolt & Nut |
| 02091-12020+02290-12031 | 1 1/4"*4 1/2"UNC | Plow Bolt & Nut |
3V4247~1V3323
| Part Number | Dimension | Part Name |
| 3V4247 | 3/4"-10*3 3/16UNF | Wheel Bolt |
| 1V3323 | 3/4"-16*2 3/8"UNF | Wheel Bolt |

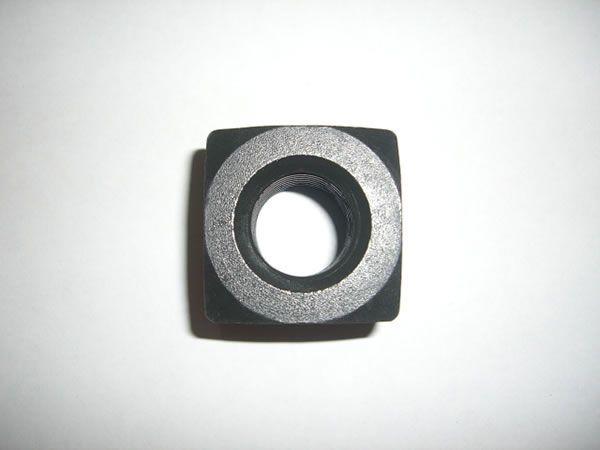

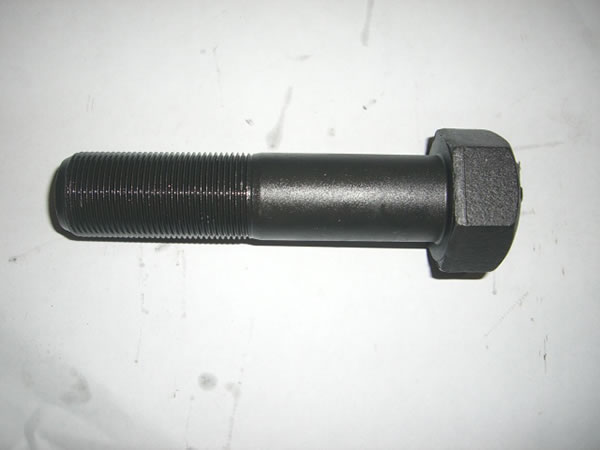

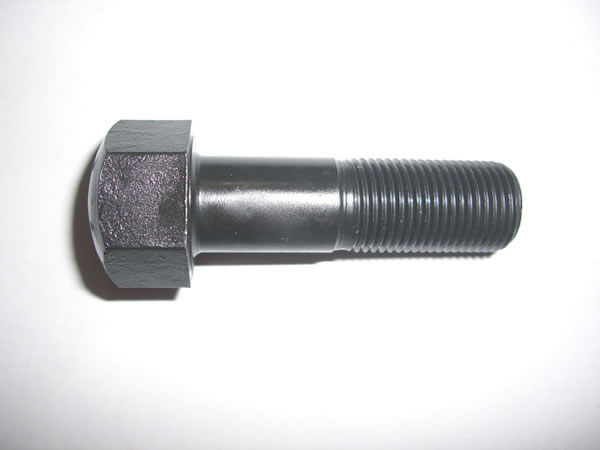

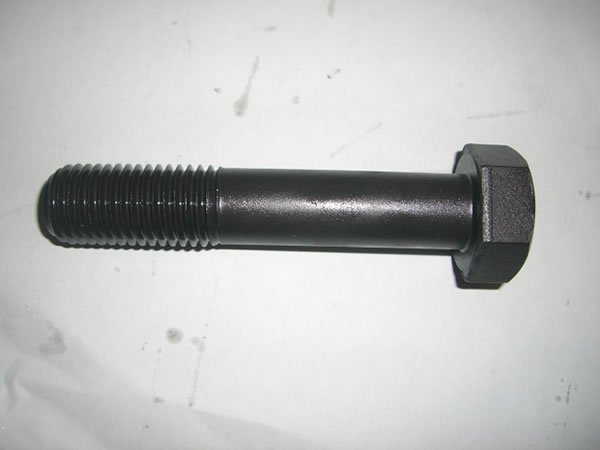

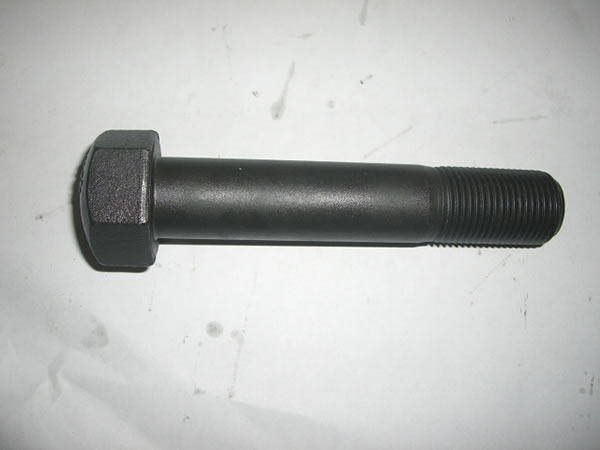

Examples we have made
-
-
-
-
-
-
-
-
