Used as Crawler Excavator Track Chains, Dozer Track Chains, Crawler Crane Track Chains, Crawler Drill Rig Track Chains
Description
Track chains, also called track link assembly, is part of the undercarriage for crawler heavy equipment including excavators, bulldozers, cranes, and drilling machines. Track link assemblies connect the forward motion generated through pedaling or other motion to the sprocket or gear wheel in order to generate a forward movement.

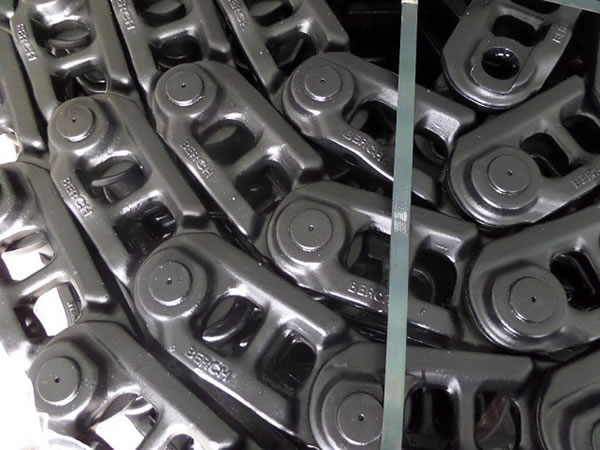

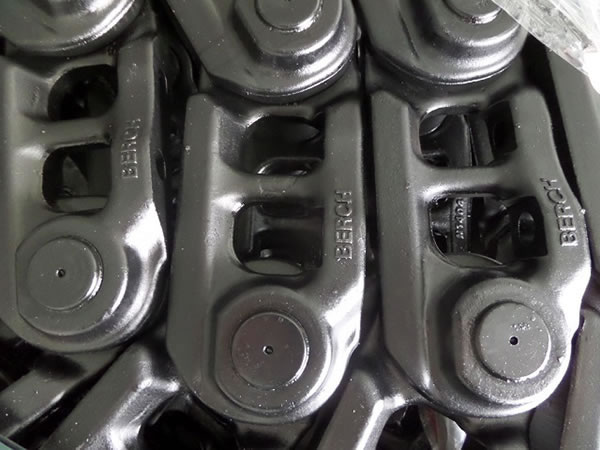

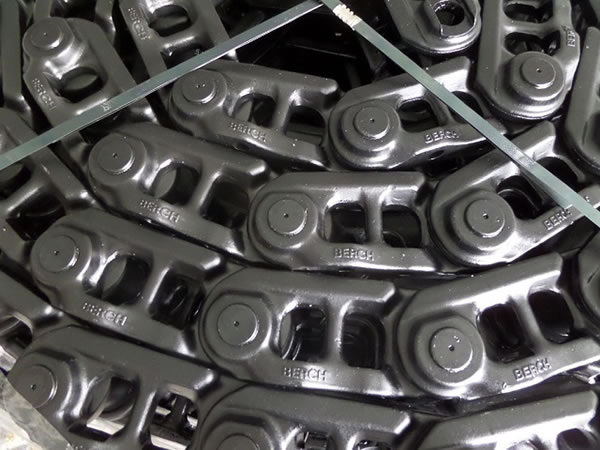

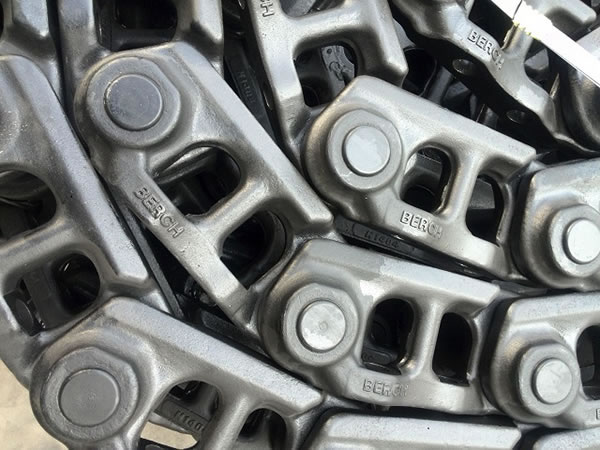

Excavator Track Link Assembly
Sealed and greased excavator track chains decrease internal friction and reduce chain noise. Berch tracks are engineered to perform well, even in harsh working conditions. Track chains use Boron steel forgings, polyurethane dish seals, extreme pressure synthetic grease and T style master pins for easy installation. Each part of the track link assembly contributes to the strength and extended service life.
Model Selection according to customer need numbers
The excavator track link assembly is applicable in Komatsu, Kobelco, Hitachi, Daewoo, Hyundai, Volvo and Jcb vehicles. We also offer OEM services according to customer drawings and samples.
Our company can provide Track Chains according to the OEM numbers as follows.
E120B～E330
Model
OEM Part No.
E120B
990648 Track Chain
E200B
096-4301 Track Chain
E311
4I7479 Track Chain
E312
990648 Track Chain
E315
1028124 Track Chain
E320
9W9353 Track Chain
E325
6Y0854 Track Chain
E330
6Y2755 Track Chain
E320
PC60-1~PC400-6
Model
OEM Part No.
PC60-1
201-32-00113 Track Chain
PC60-3/5
201-32-00131 Track Chain
PC60-6
201-32-00200 Track Chain
PC60-7
201-32-00300 Track Chain
PC100-1/2
202-32-00116 Track Chain
PC100-3
202-32-00131 Track Chain
PC100-5
202-32-00201 Track Chain
PC100-6
202-32-00202 Track Chain
PC120-1/2
202-32-00131 Track Chain
PC120-3
202-32-00011 Track Chain
PC120-5/6
202-32-00101 Track Chain
PC200-1/2
205-32-00031 Track Chain
PC200-3
205-32-00051 Track Chain
PC200-5/6
20Y-32-00013 Track Chain
PC200-7
20Y-32-00300 Track Chain
PC220-1/2
206-32-00011 Track Chain
PC220-3
206-32-00032 Track Chain
PC220-5/6
206-32-00103 Track Chain
PC300-1
207-32-00010 Track Chain
PC300-2
207-32-00031 Track Chain
PC300-3/5
207-32-00100 Track Chain
PC300-6
207-32-00300 Track Chain
PC300-7
207-32-00310 Track Chain
PC400-1
208-32-00011 Track Chain
PC400-5
208-32-00101 Track Chain
PC400-6
208-32-00300 Track Chain
EX60～EX400-5
Model
OEM Part No.
EX60
9096710 Track Chain
EX60-2/3
9096710 Track Chain
EX60-5
9156478 Track Chain
EX100
9091948 Track Chain
EX100-2/3
9092929 Track Chain
EX100-5
9143278 Track Chain
EX120-1
9091951 Track Chain
EX120-2/3
9092932 Track Chain
EX120-5
9138747 Track Chain
EX200-1
9066724 Track Chain
EX200-2/3
9092517 Track Chain
EX200-5
9135631 Track Chain
EX220
9093029 Track Chain
EX220-2/3
9093029 Track Chain
EX220-5
9180319 Track Chain
EX270-1/2
9070645 Track Chain
EX270-5
9180884 Track Chain
EX300-1/2/3
9070645 Track Chain
EX300-5
9156481 Track Chain
EX330-5
9156481 Track Chain
EX400-2/3
9133225 Track Chain
EX400-5
9133225 Track Chain
EX200-5
SK60～SK300
Model
OEM Part No.
SK60
24100N6311F2 Track Chain
SK120
24100J12245F5 Track Chain
SK200
24100J11338F2 Track Chain
SK300
24100J15218F2 Track Chain
SK200-3
DH200～DH280
Model
OEM Part No.
DH200
2272-9004 Track Chain
DH220
2272-1025 Track Chain
DH280
2272-6047 Track Chain
R200～R290
Model
OEM Part No.
R200
5601354 Track Chain
R210
81EM-20010 Track Chain
R290
175-8822 Track Chain
R210LC-7

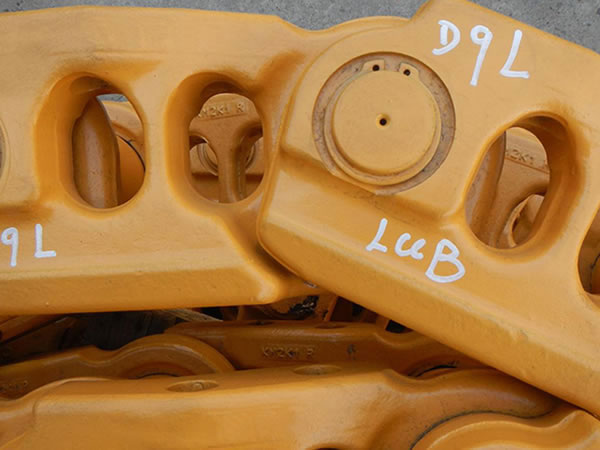

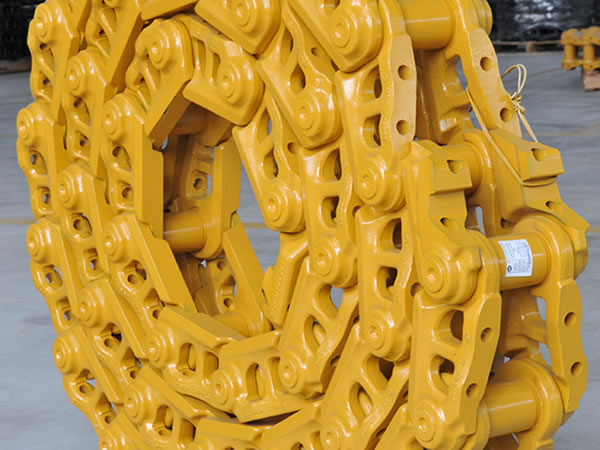

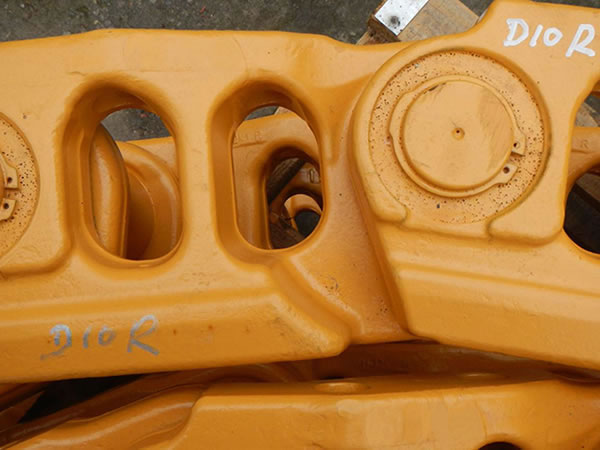

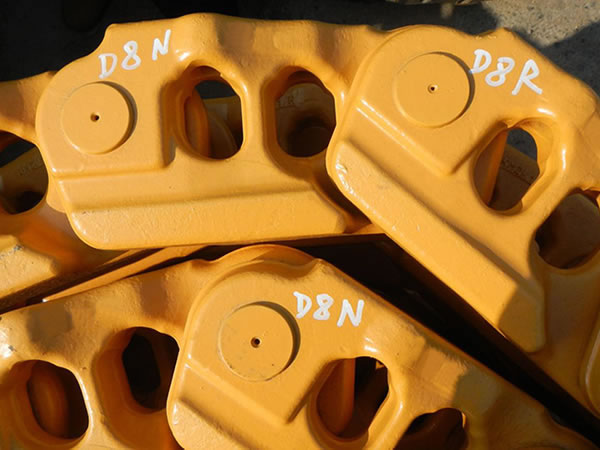

Bulldozer Track Chain
Sealed and lubricated track chains are specifically designed for an increased pin and bushing retention. The track link incorporates a greater pin-to-link and bushing-to-link contact areas where additional link wear material increases the component life. Exclusive heat treatments give Berch links a consistent surface hardness, a superior hardened depth and a strong core hardness. Berch pins and bushings are dimensionally matched to the links and manufactured to provide an excellent track joint reliability, while the design ensures a maximum sealing performance. All of this leads to an excellent wear resistance, strength and durability for a great sealing performance and longer service life.
Our bulldozer track chains are applicable to Komatsu and Shantui vehicles. We can also offer OEM services according to customer drawings and samples.
